Understanding High-Density Patch Panels: What They Are, How They Work, and Who Should Use Them?
In today’s fast-paced digital world, our reliance on network infrastructure has increased exponentially. According to the IDC, by 2025 “the global datasphere will grow to 163 zettabytes… that’s ten times the 16.1 zettabytes of data generated in 2016.” With a single zettabyte being the equivalent of one trillion gigabytes and as businesses grow and data demands increase dramatically, identifying and executing the most efficient ways to manage connectivity is vital to ensuring both fast and reliable performance. One such tool in optimizing efficiency within a network setup is the patch panel. However, when it comes to maximizing space, performance, and overall efficiency, the existence of high-density patch panels are on a different level than your traditional patch panel.

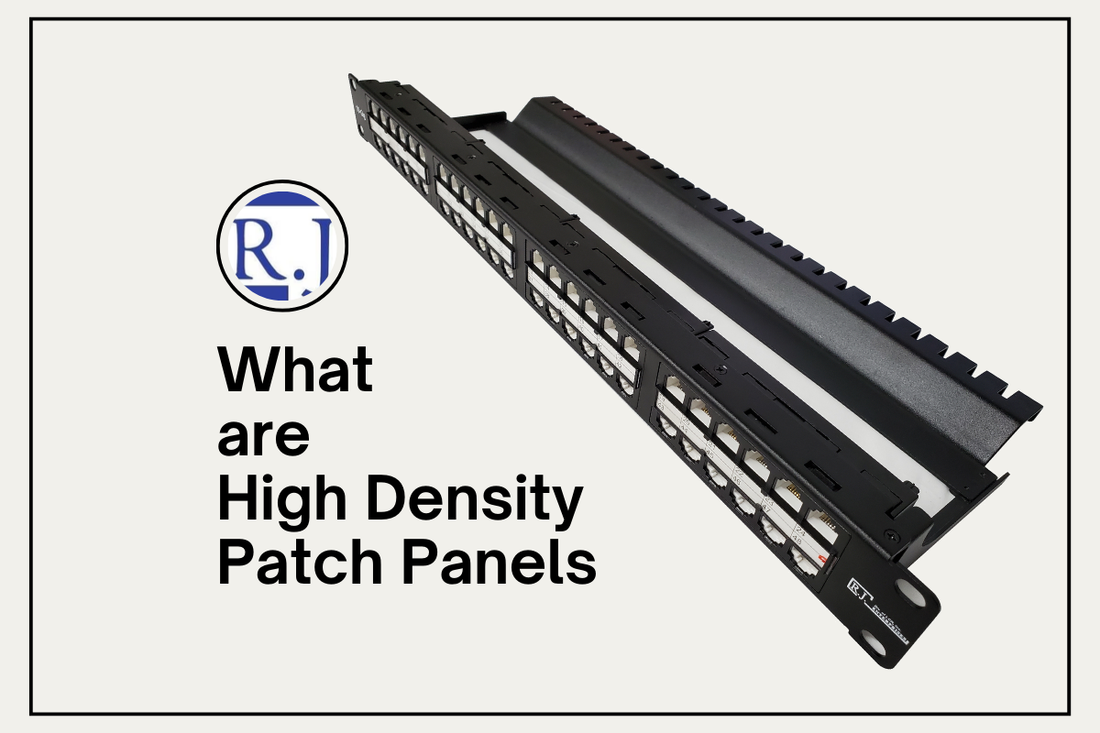

What Are High-Density Patch Panels?
High-density patch panels are networking components designed with the intention to increase port density, meaning they are able to accommodate a larger number of ports within the same or smaller space than a typical patch panel. High-density patch panels are usually designed to fit with a 1U (1.75-inch) rack space. In comparison to a traditional patch panel, a high-density patch panel is then able to house 48 or more ports within the same rack space. To achieve the same number of port availability, a traditional patch panel would need 2U (3.5-inch) of rack space.
The nature of high-density panels makes them invaluable and essential in environments where space optimization is critical and the need for a larger number of connections remains high. Whether you’re setting up for a data center, office network, or managing a large-scale server farm, a high-density patch panel will help organize cables and ensure efficient signal transmission. All without taking up excessive rack space!
What Makes High-Density Patch Panels Highly Effective?
High-density patch panels stand out for several reason, particularly their ability to maximize space and streamline network management:
Space Efficiency
In environments like data centers, server rooms, or large office networks, rack space is oftentimes more than not at a premium. High-density patch panels allow for the accommodation of more connections—up to 48 ports or more—while taking up just 1U of rack space. Consequently, businesses are able to install more networking equipment without sacrificing additional physical space. The enabling of installation of more servers, switches, and other essential equipment within the same rack also turns high-density patch panels into an extremely cost-effective solution.
Tool-less Installation
Many high-density patch panels feature tool-less installations, making the setup process faster and easier. With “plug-and-play” functionality, users can avoid using punch-down tools. This allows installation to speed up by up to 90% compared to using a punch down tool on a punch block. This is a huge benefit in environments where minimizing downtime and setup time is essential, such as when deploying networking equipment in a data center.
Improved Cable Management
Effective cable management is another key element to maintaining an organized and easy-to-troubleshoot network. Organized cables reduce the time needed to access and identify specific connections in events such as maintenance or cable rerouting. In a high-density setup, the benefits from this reduction are more pronounced as they allow for a smoother troubleshooting due to the lack of cable clutter. High-density patch panels typically come equipped with cable management features like cable organizers, labeling systems, and organized port layouts to ensure cables are neatly arranged and easy to trace.
Enhanced and Reliable Performance
High-density patch panels are typically designed to support high-speed data transmission, such as 10G Ethernet connections. And as mentioned beforehand, high-density patch panels are defined as patch panels featuring a higher port density than a traditional patch panel. A side effect of these two key features is crosstalk, where an overlap between electrical signals can cause EMI due to each signal’s electromagnetic field. However, to combat this side effect, high-density patch panels are also designed with advanced shielding to maintain signal integrity. This ensures stable and high-performance connections even in high-traffic networks.
Who and Where Are High-Density Patch Panels Ideal For?
In professional environments where maximizing rack space, network performance, and a clean structured organization are top priorities, high-density patch panels are extremely ideal. Due to the “every inch counts” design approach when building and managing these environments, the highly sought after aspects of a high-density patch panel becomes a cost-effective choice. That is to not say that high-density patch panels are any less suitable in an environment such as a home network. In fact, high-density patch panels can excel in these settings as well depending on the space constraints and port requirements of each user. Some examples of settings where high-density patch panels can excel at are:
Data Centers
The backbone of modern digital infrastructure are data centers. Data centers house vast amounts of networking equipment that can store, process, or distribute large amounts of data. The concentration of so many different networking equipment in one location is reflected in the cost of building and running these centers. A square foot can cost anywhere between $600 to $1,100, easily running up to hundreds of millions of dollars when factoring in the cost of the entire facility. Using high-density patch panels, data center managers can save valuable rack space while supporting the large number of connections required for high-speed data transmission. Whether it comes to managing servers, storage devices, or networking equipment, high-density patch panels streamline setup and maintenance ensuring high efficiency of data flow across multiple systems.
Colocation Facilities
Colocation facilities are another type of data centers where businesses or retail customers can rent rack space to house their servers and networking equipment. The facilities provide the necessary space and power while each organization/customer provides for their own servers or other computing hardwares in the rented area. High-density patch panels enable the facility providers to offer more connections within the same amount of physical space… which in turn allows for more clients or services to be hosted in a smaller area.
Enterprise Networks
For large businesses with complex networking needs, a high-density patch panel provides the ability to handle many connections in a single rack unit. This is crucial for enterprise networks that require quick scaling, reliable performance, and minimal physical footprint. From connecting switches to workstations, high-density patch panels facilitate the efficient organization of networks that handle vast amounts of data.
Telecommunication
In an industry where transmission of data such as text, voice, audio, and video is the basis of their service, telecommunication providers have to operate huge networks to maintain said service. Telecommunications providers also rely on high-density patch panels to manage their large-scale network infrastructure. The panels ensure that all devices are properly connected while maintaining the optimal network performance and minimizing any interference.
Are High-Density Patch Panels the Right Choice for You?
The question now is, are high-density patch panels the networking solutions you need in your setup? The short answer is that high-density patch panels are excellent additions to any setups or environments. The longer answer is that the specific needs and scale of each consumer’s network dictates the necessity of these high-density panels.
High-density patch panels are great at maximizing space, reducing setup time, and maintaining high-performance networks. For larger networks expanding businesses, the benefits are a lot more clearer when it comes to achieving higher efficiency, organization, and performance. High-density patch panels are an invaluable tool for large-scale, high-performance networks. They provide exceptional space-saving capabilities, easy installation, and reliable connectivity. Whether you’re managing a data center, a colocation facility, or an enterprise network, these patch panels offer the efficiency and performance you need to keep your infrastructure running smoothly.
While for home offices and smaller scale networks, a high-density patch panel can be considered as overkill if the number of connections does not exceed 24 ports or where efficient use of rack space isn’t a priority. Consumers with smaller networking needs may, instead, find traditional patch panels more appropriate for their setups.
At the end of the day, high-density patch panels themselves remain an effective solution. Their suitability, on the other hand, depends on each specific use case. For businesses looking to streamline their network setup while ensuring robust, high-speed connections, high-density patch panels are an investment that can lead to long-term organizational and operational benefits. Understanding the scale and requirements of your network will help determine whether a high-density patch panel is the right choice for you.
